Description
n20 gear motor dimensions electrical center b2cSPECIFICATIONS GA12 N20 E Encoder DC 12V(Compatible 6V 3V) Mini High Torque Low Speed Turbo Worm Gear Reducer Motor 30 4000RPM Hall Sensor 7PPR,n20 motor encoder ,dc motor ga12 n20,n20 motor with encoder Brand Name: Anmiy Certification: ce Origin: Mainland China Output Power: 1W Commutation: Brush Type: Micro Motor Protect Feature: Drip proof Construction: Permanent Magnet Model Number: GA12 N20 S0310D E The N20 series motors have various models,
SPECIFICATIONS
GA12-N20-E Encoder DC 12V(Compatible 6V 3V) Mini High Torque Low Speed Turbo Worm Gear Reducer Motor 30-4000RPM Hall Sensor 7PPR,n20 motor encoder ,dc motor ga12 n20,n20 motor with encoder
Brand Name: Anmiy
Certification: ce
Origin: Mainland China
Output Power: 1W
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Model Number: GA12-N20-S0310D-E
The N20 series motors have various models, click for details:
More DC brush motor series (N20 series's brother):

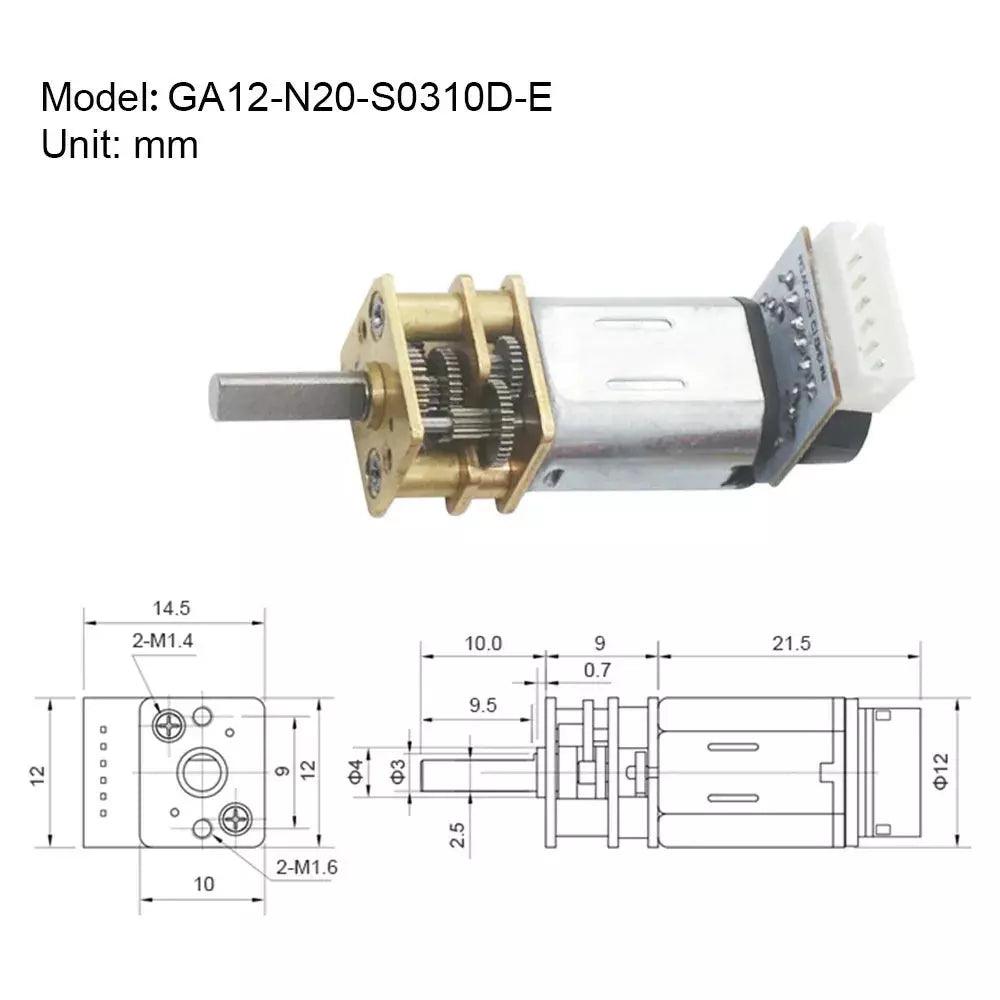

Model: GA12-N20-S0310D-E
Gear Box Name: GA12
Gear Box Type: Spur Gear
Motor Body Name: N20 (B1215)
Motor Body Type: DC Brushed Motor (BDC)
Rated Voltage: DC 12V (can be reduced to 6V, 3V, etc.)
Motor Weight: 11g (approx.)
Motor Length: 36mm
Motor Body Size: 12mm(diameter) * 30.5mm(height)
Shaft Number: Single
Shaft Size: 3mm(diameter) * 10mm(length)
Shaft Shape: D-Cut, 2.5mm(thickness) * 9.5mm(length)
Motor use temperature: 0℃ - 70℃
Motor storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH
The motor's rated voltage is DC 12V, it can be reduced to 6V, 3V, etc. When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.
The Speed (RPM) in the purchase option is based on DC12V.
When the voltage is reduced to 6V, the speed is about 1/2 of those of 12V. So if you want a motor of 6V m RPM, please select 12V 2*m RPM, such as want 6V 100 RPM select 12V 200 RPM.
When the voltage is reduced to 3V, the speed is about 1/4 of those of 12V. So if you want a motor of 3V n RPM, please select 12V 4*n RPM, such as want 3V 50 RPM select 12V 200 RPM.
That is 12V 200RPM = 6V 100RPM = 3V 50RPM, other RPM are calculated in the same way.
For more voltages and speeds, please contact us.
Package included:
- 1 x Motor with Encoder
- 1 x Encoder Wire (about 150mm length)
Encoder Specifications:
Input signal: Square wave AB phase
Encoder voltage: DC 3.3~5V
Hall response frequency: 100kHz
Basic pulse number: 7PPR
Pin Functions:
- M1: Motor Power Supply – (Switch M1 and M2, motor rotation direction reversed)
- GND: Encoder GND
- C1: Encoder A Phase (The motor outputs 7 times Motor Reduction Ratio pulses for each cycle of rotation)
- C2: Encoder B Phase
- VCC: Encoder Power Supply + (DC 3.3~5V, VCC and GND must not be connected incorrectly)
- M2: Motor Power Supply +
